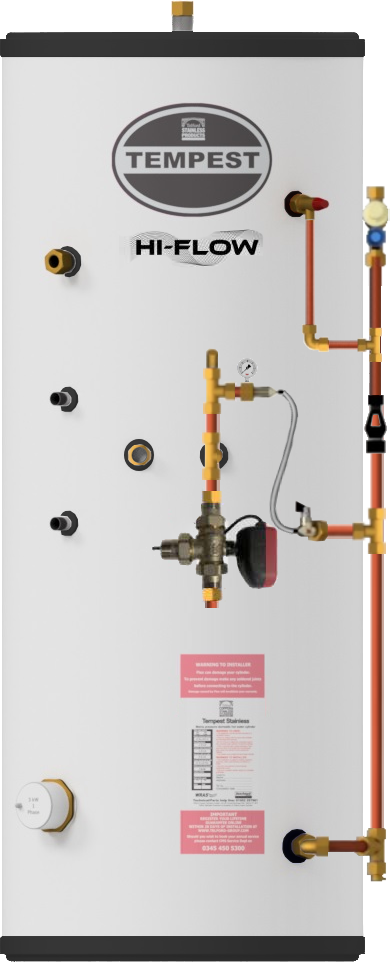

TEMPEST HEAT PUMP PRE-PLUMBED HI-FLOW

Not only is our Tempest Heat Pump cylinder available with a more simplified approach to the pipework configuration, we now offer hi-flow components which allow almost double the flow coefficient. This allows our cylinders to be suitable for the majority of Heat Pump manufacturers and allows for even more sizes to be used with our products. The cold water and heating pipework is attached to the cylinder with the pressure reducing valve, filling loop and drain off attached to the Cold Feed. The heat pipework is supplied with a pressure gauge along with thumb vent and 3 port valve. Upon ordering you may request a pump to be fitted for the heating if your Heat Pump unit lacks a built in pump.

Features & Benefits

• Remote expansion vessel with factory-fitted wall mounting bracket
• Full unvented kit supplied
• Hi-Flow components
• Pre-plumbed with pre-fabricated pipework and wiring saves installation time
• Duplex stainless steel provides superior corrosion resistance
• White steel cased finish (other colours available on request)
• 8m working head circulating pump
• 316L grade stainless-steel 22mm compression fittings and coils
• Supplies mains pressure hot water and high flow rates
• Fast reheat
• Factory-fitted temperature and pressure relief value set at 7 bar / 90°C
• Up to 3 bar max pressure
• Highly efficient
• Fully insulated to minimise any heat loss
• Factory-fitted 3kW immersion heater(s)
• Cylinders available in 150-500 litre capacities
• Lifetime manufacturing warranty on inner cylinder (2 years on components)*

---

Technical Data

---

*Terms & Conditions apply
